5 Daylights Each Tower 2 Towers Smart Card Laminating Machine Semi-Automatic Card Laminator YLL-25B 420×520
Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-25B 420×520
1. Introduction of 5 Daylights Each Tower 2 Towers Smart Card Laminating Machine Semi-Automatic Card Laminator YLL-25B 420×520
2 towers, 5 daylights for each tower, 1 big cylinder for each cylinder, steel lamination template, PLC control, designed for normal card lamination
| PVC sheet layout: | 5×5, 3×8, 4×8 |
| Laminating template size and material | 420×520mm, steel |
| Hydraulic cylinder number | 1 main cylinder (diameter 220mm) for each tower |
| Daylight number/distance | 5 daylights, 2 tower/50mm |
| Control mode | PLC |
| Pressure precision and range | +/-0.3Mpa, 0.3-16Mpa (adjustable) |
| Temperature control precision | +/-1℃ |
| Heating temperature: | ≤200℃ |
| Power | 23 KW (Maximum) |
| Power supply | AC380V 50/60HZ 3 phase 5 wires |
| Dimension | 2500mm×1200mm×1800mm |
| Gross weight | about 3200kgs |
2. Features of 5 Daylights Each Tower 2 Towers Smart Card Laminating Machine Semi-Automatic Card Laminator YLL-25B 420×520
- It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;

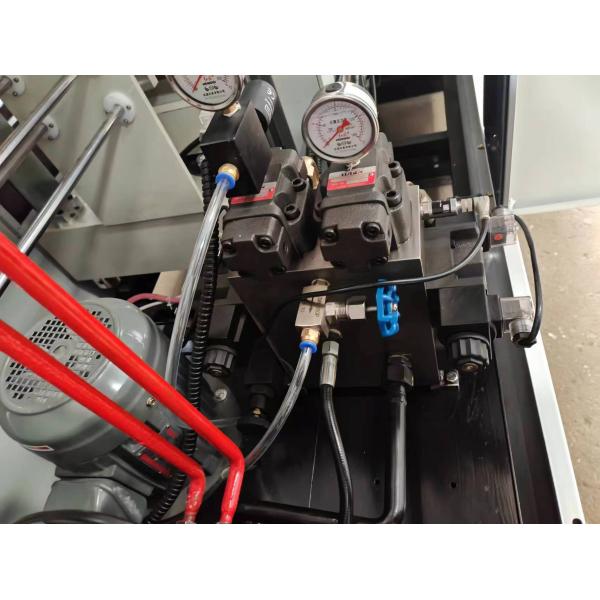

- pressure supply is realized by two motors and two oil pumps for very high reliability;
- Automatic lamination parallelism adjustment is available.
- The pressure and temperature control module is applied to ensure higher control precision.
- If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
- The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.
3. Technical Parameter of 5 Daylights Each Tower 2 Towers Smart Card Laminating Machine Semi-Automatic Card Laminator YLL-25B 420×520
1). PVC sheet layout: 5×5, 3×8, 4×8
2). Laminating template size and material: 420×520mm, steel
3). Hydraulic cylinder number: 1 main cylinder (diameter 220mm) for each tower
4). Daylight number/distance: 5 daylights, 2 tower/50mm
5). Control mode: PLC
6). Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)
7). Temperature control precision: +/-1℃
8). Heating temperature: ≤200℃
9). Power: 23 KW (Maximum)
10). Power supply: AC380V 50/60HZ 3 phase 5 wires
11). Dimension: 2500mm×1200mm×1800mm
12). Gross weight: 3200 kg.
4. Application of 5 Daylights Each Tower 2 Towers Smart Card Laminating Machine Semi-Automatic Card Laminator YLL-25B 420×520
Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.
|
|

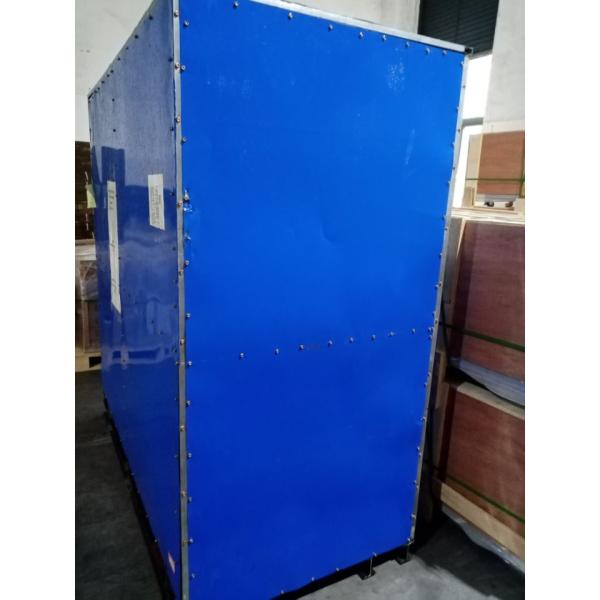

5 Daylights Each Tower 2 Towers Smart Card Laminating Machine Semi-automatic card laminator YLL-25B 420×520 Images
|
